Spatial heatmaps

The branchingheatmap function visualises the internal state of all particles alive at a given time, positioned at their spatial grid coordinates as assigned by tissue_growth!. An animation sweeping over the full time span can be produced with animate_heatmaps.

Setting up the problem

Define a simple scalar SDE (constant drift zero, diffusion coefficient 0.5) and wrap it in a ConstantRateBranchingProblem with a 2-D spatial layout:

using BranchingProcesses, StochasticDiffEq, Plots

f(u, p, t) = 0.0
g(u, p, t) = 0.5
prob = SDEProblem(f, g, 1.0, (0.0, 7.0))

bp = ConstantRateBranchingProblem(prob, 1.0, 2; ndim=2)
sol = solve(bp, EM(); dt=0.01);

Plotting a heatmap

branchingheatmap plots the state of every alive particle at the requested time, colour-coded by the value of a scalar function of its state. By default the state itself is used as the scalar (suitable for the scalar SDE above) and the plot time defaults to the final time of the simulation:

branchingheatmap(sol)
Example block output

Pass time to inspect the tissue at an earlier point in time:

branchingheatmap(sol; time=1.5)
Example block output

A custom scalar function can be applied to each particle's interpolated state vector via the func keyword argument:

branchingheatmap(sol; func=u -> u^2)
Example block output

Animating over time

animate_heatmaps produces a Plots.Animation by recording heatmap frames at nframes regularly spaced time points across the full time span.

Note

animate_heatmaps requires Plots.jl to be loaded (using Plots). It is implemented as a package extension.

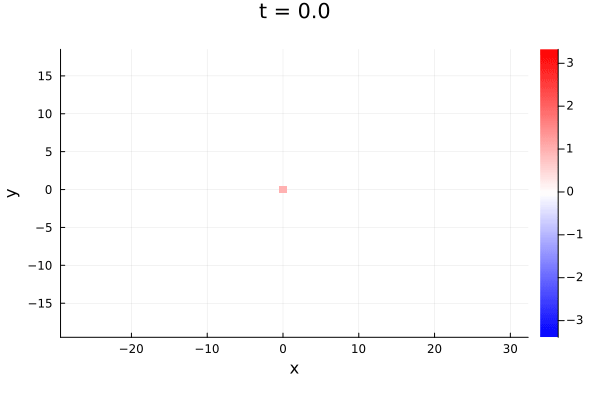

anim = animate_heatmaps(sol; nframes=30)
gif(anim, "growth.gif"; fps=10, loop=1)
Example block output

Spatial clustering in the Luria-Delbrück model

In the Luria-Delbrück model without back-mutation, once a mutant arises, all its offspring are mutants too. Hence mutants should cluster together in space:

using Catalyst, JumpProcesses
rn = @reaction_network begin
    μ, W --> M
end
u0 = [:W => 1, :M => 0]
p  = [:μ => 0.1]
tspan = (0.0, 10.0)

jprob  = JumpProblem(rn, u0, tspan, p)
bjprob = ConstantRateBranchingProblem(jprob, 1.0, 2; ndim=2);

bjsol = solve(bjprob, SSAStepper());
branchingheatmap(bjsol)
Example block output

For a multivariate model, the heatmap shows the value of the first component by default, that is, the wildtype status (0 or 1) in the figure above. To plot the mutant status (second variabele) we can use the func keyword:

branchingheatmap(bjsol; func=u->u[2])
Example block output
